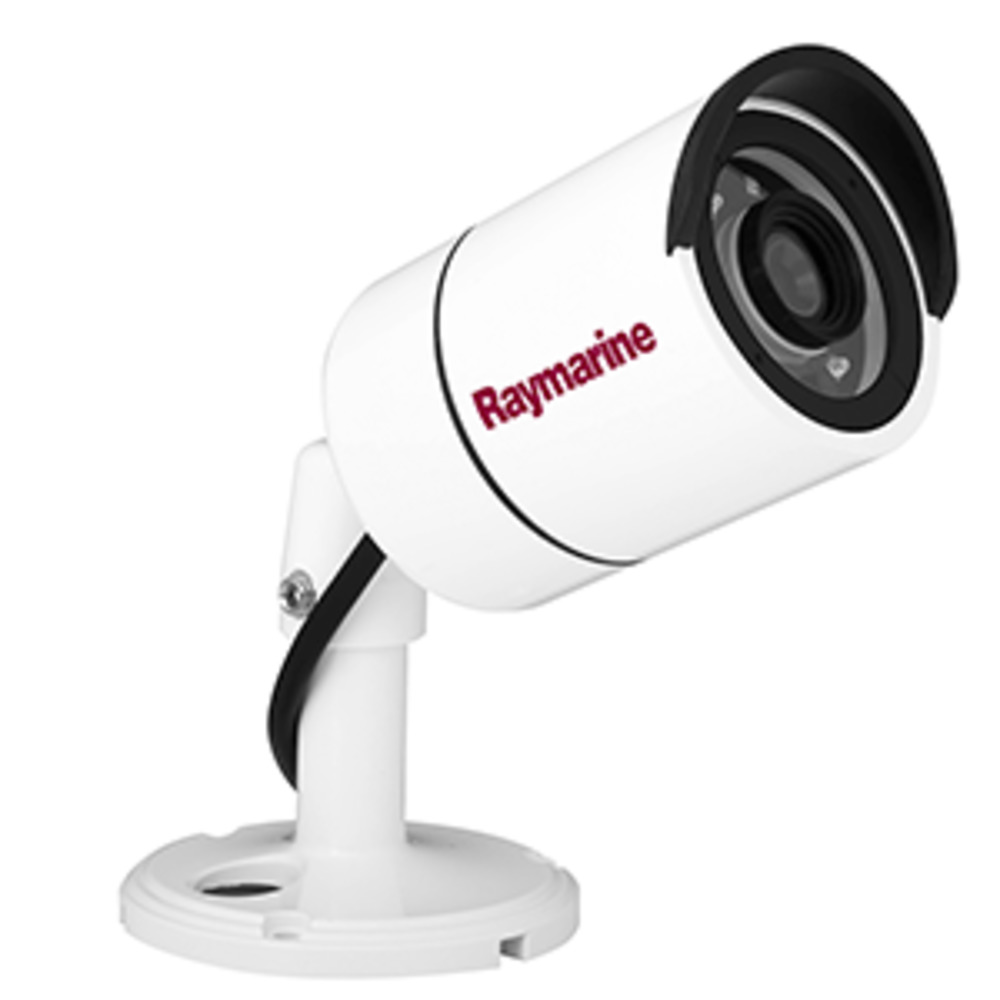

Raymarine CAM210 Day and Night IP Marine Bullet Camera

Description

CAM210 Day and amp Night IP Marine Bullet Camera

Ruggedised, High Definition, Day and Night network bullet video camera suitable for all above deck applications. Integrated sun-cover for maximum visibility and small frame size for easy installation anywhere on the boat.

• Plug and play integration with Raymarine MFD and #39s running Lighthouse II
• Power over Ethernet (PoE) or direct 12V DC power supply
• High bright IR LEDs for operation in total darkness
• Digital Defog processing improves the captured image in poor weather conditions (such as smog, fog or smoke)
• Intelligent IR technology for clear video images at night in all conditions

Specifications:

• CPU: 32-bit ARM9 RISC CPU up to 432MHz
• Flash / SDRAM: 128MB / 128MB
• Image Sensor: 2.0 Megapixel 1/2.8 and #34 SONY progressive scan CMOS(Exmor)
• Total Pixels: 1952(H) x 1116(V) 2.18 Megapixel
• Effective Pixels: 1944(H) x 1104(V) 2.15 Megapixel
• S/N Ratio: More than 50dB
• Minimum Illumination: 0Lux (IR On)
• IR Distance: 20M
• Day and amp Night: ICR
• Lens: 6.0mm Megapixel Board Lens
• Field of View:
  Diagonal = 63.6 and deg +/- 3 and deg
  Horizontal = 53.3 and deg +/- 3 and deg
  Vertical = 33.1 and deg +/- 3 and deg
• Video Compression: H.264 High Profile@4.0, MJPEG Image quality: 3 Steps
• Resolution: Up to 1920 x 1080 (Full HD)
• Frame Rate: H.264 Up to 30fps with 1920×1080 | MJPEG Up to 30fps with VGA resolution
• Video Streaming:
  Support multi stream with H.264, MJPEG
  Adjustable frame rate
  CVBR/CBR in H.264
• Pan / Tilt / Zoom: Digital Pan, Tilt and Zoom
• Image Setting:
  Day and amp Night
  Auto White Balance
  Auto Exposure
  Privacy Mask
  Effects – Color, Sharpness, Mirror / V-Flip
• Security: Password protection, User access log, HTTPS encryption
• Supported Protocol: HTTP, HTTPS, FTP, SMTP, UPnP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP
• Intelligent Video: Motion detection up to 1920×1080 with 4×3 blocks
• Power Source: DC12V/1.5A, PoE(Power over Ethernet): 802.3af
• Power Consumption: Max. 3.3W, Max. 5.3W with IR
• Net Weight: 900g
• LED and #39s: Power, Network Connection
• Dimensions: 83.8mm(W) x 155mm(H) x 178.1mm(D) including Bracket
• General Operation Temperature: 0 and deg40 and deg Celsius(32F104F)
• Storage Temperature: -10 and deg50 and deg Celsius(14F122F)
