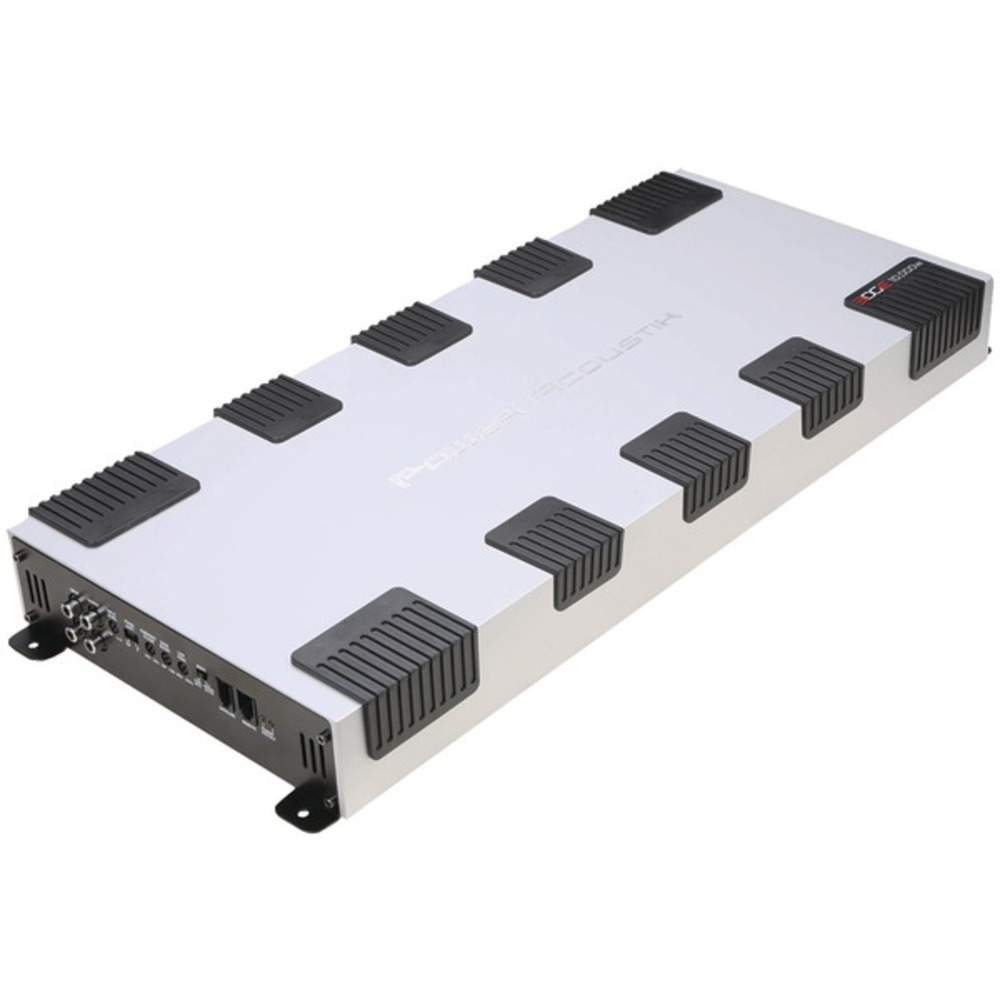

Power Acoustik EG1-10000D Edge Series Monoblock Class D Amp (10,000 Watts max)

Description

Class D monoblock

1ohm stable monoblock operation for max power

2 amps are bridgeable for double power

Military-grade PCB with PWM MOSFET power supply

Direct short, thermal and overload circuit protection

High/speaker-level and low-level/RCA inputs

200mV-6V low-level RCA input

4-gauge power wire and 8-gauge speaker wire outputs

Variable 12dB high- and low-pass crossovers

12dB bass boost and 180deg phase shift increase and improve low-octave harmonics

Includes dash-mount gain control

10,000W max

1,600W RMS x 1 @ 2ohm

3,300W RMS x 1 @ 1ohm

5,000W RMS x 1 @ .5ohm bridged

Dim: 2.25″H x 20.5″W x 9″D
