Poly-Planar 2-Channel Amplifier – 50W

Description

2 Channel, 50 Watt Expansion Amplifier
Product #: ME52

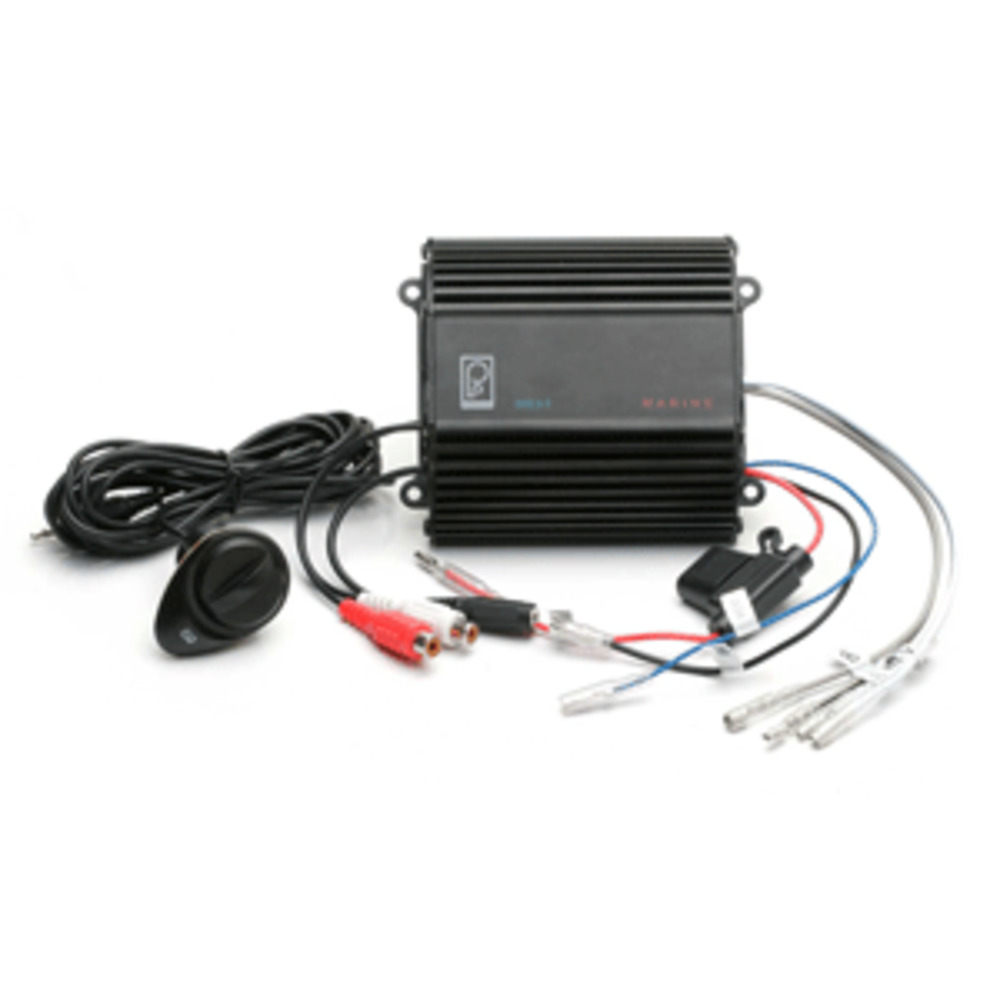

The ME-52 is a compact 2-channel 50-watt audio amplifier with separate volume control. This unit is designed for adding additional speakers to an existing system or as a separate zone amp.

Features:

• Accepts line level or speaker level inputs

• Powers up to 4, 4 Ohm speakers

• Separate waterproof Volume control (10′ lead)

• Use to add additional loudspeakers to a current audio system

• Use to provide amplification for a separate audio zone

• Use as a stand-alone system amplifier for any audio source

Specifications:

• Speaker Impedance: 2-8 ohm

• Output Power 2ohm load: 25W RMS/Channel

• Output Power 4ohm load: 15W RMS/Channel

• Frequency Response: 20Hz-20kHz

• Operating Voltage: 13.8V DC (10V-16V

• Idle Current (no signal): 10mA

• Maximum Current Draw (full power): 7 amps

• Remote Wire Current: 4mA

• Approximate Length: 4-7/8″ (124mm)

• Approximate Width: 4-3/16″ (106mm)

• Approximate Height: 1-9/16″ (39mm)

• Weight: 0.94lbs

• Volume Control Cable Length: 114″
